Description

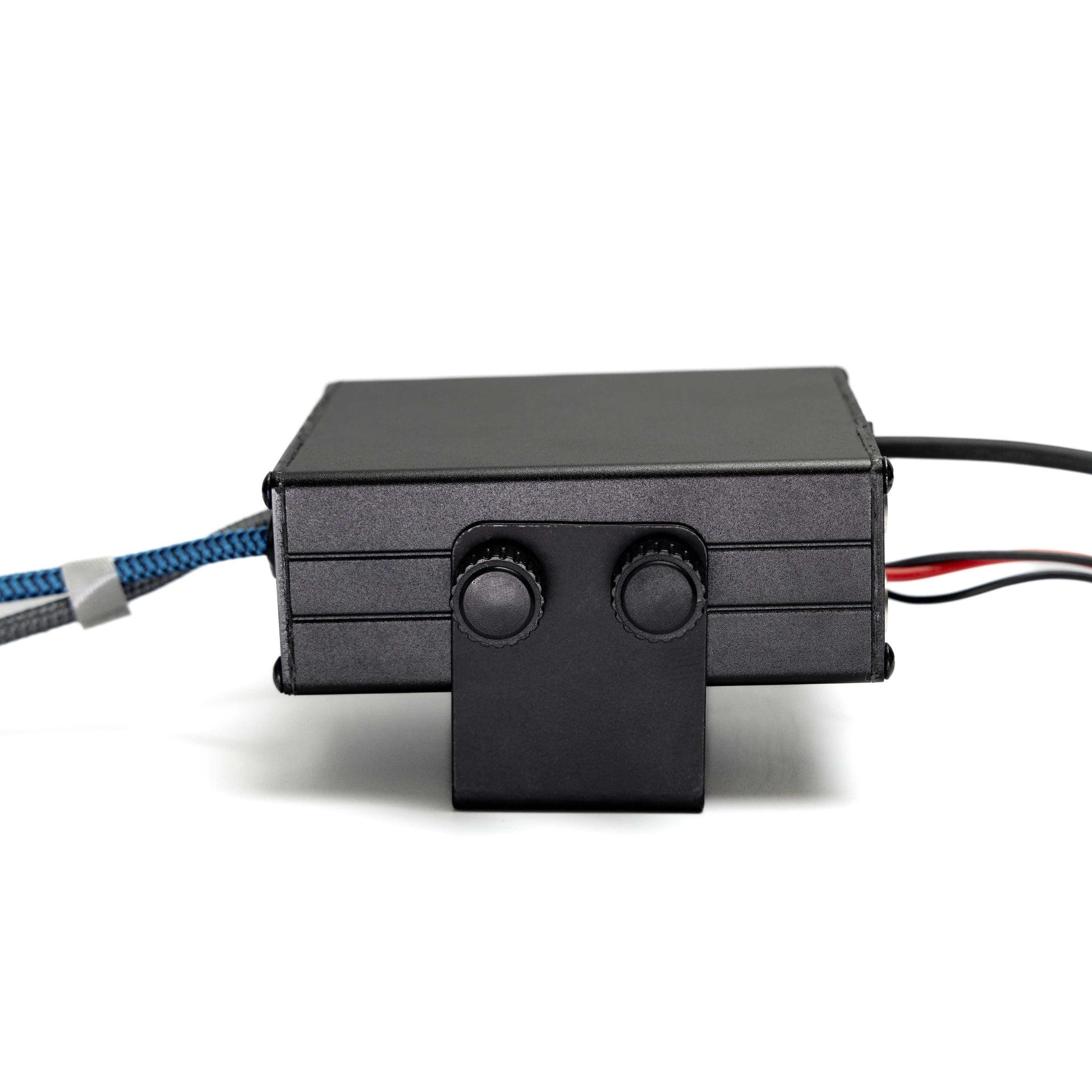

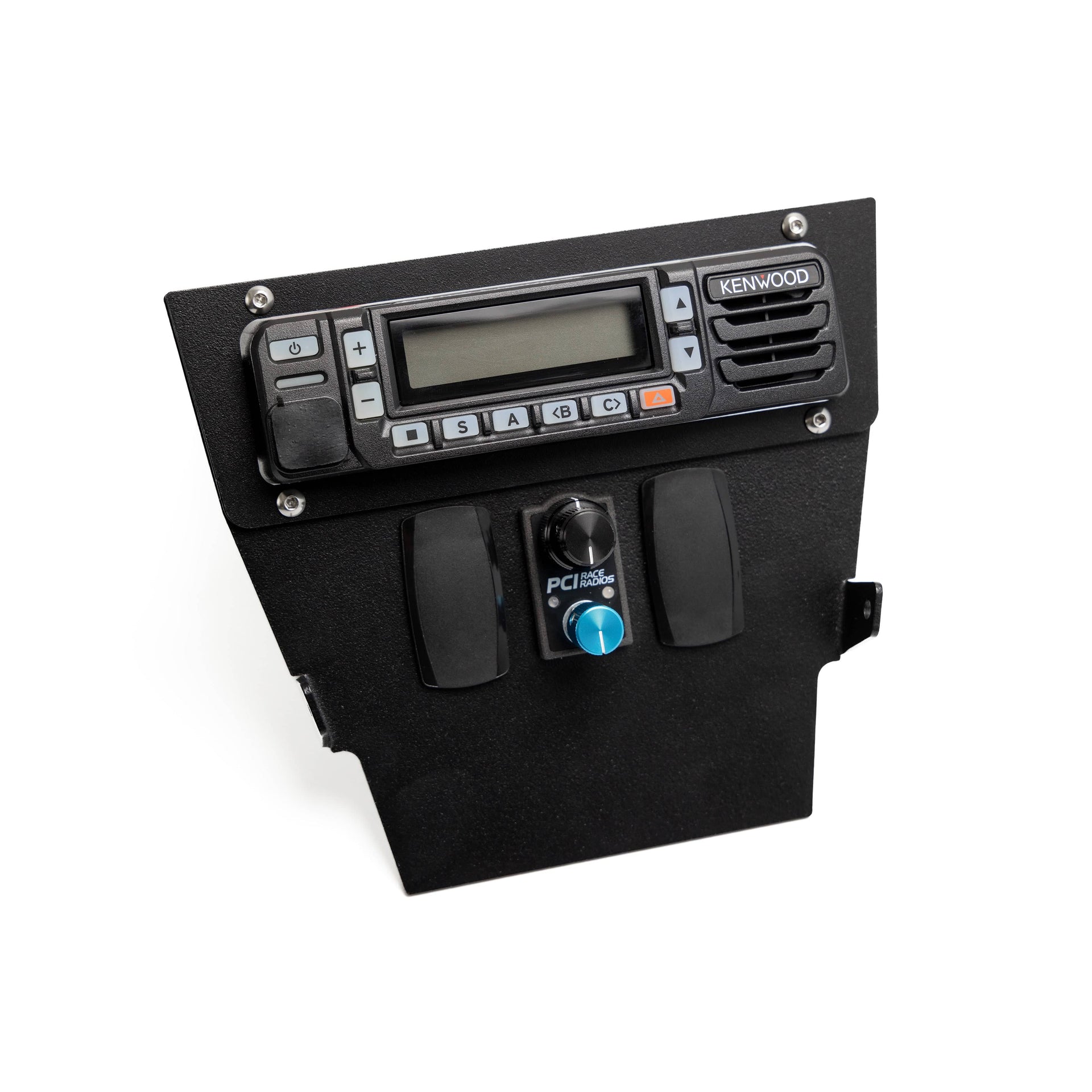

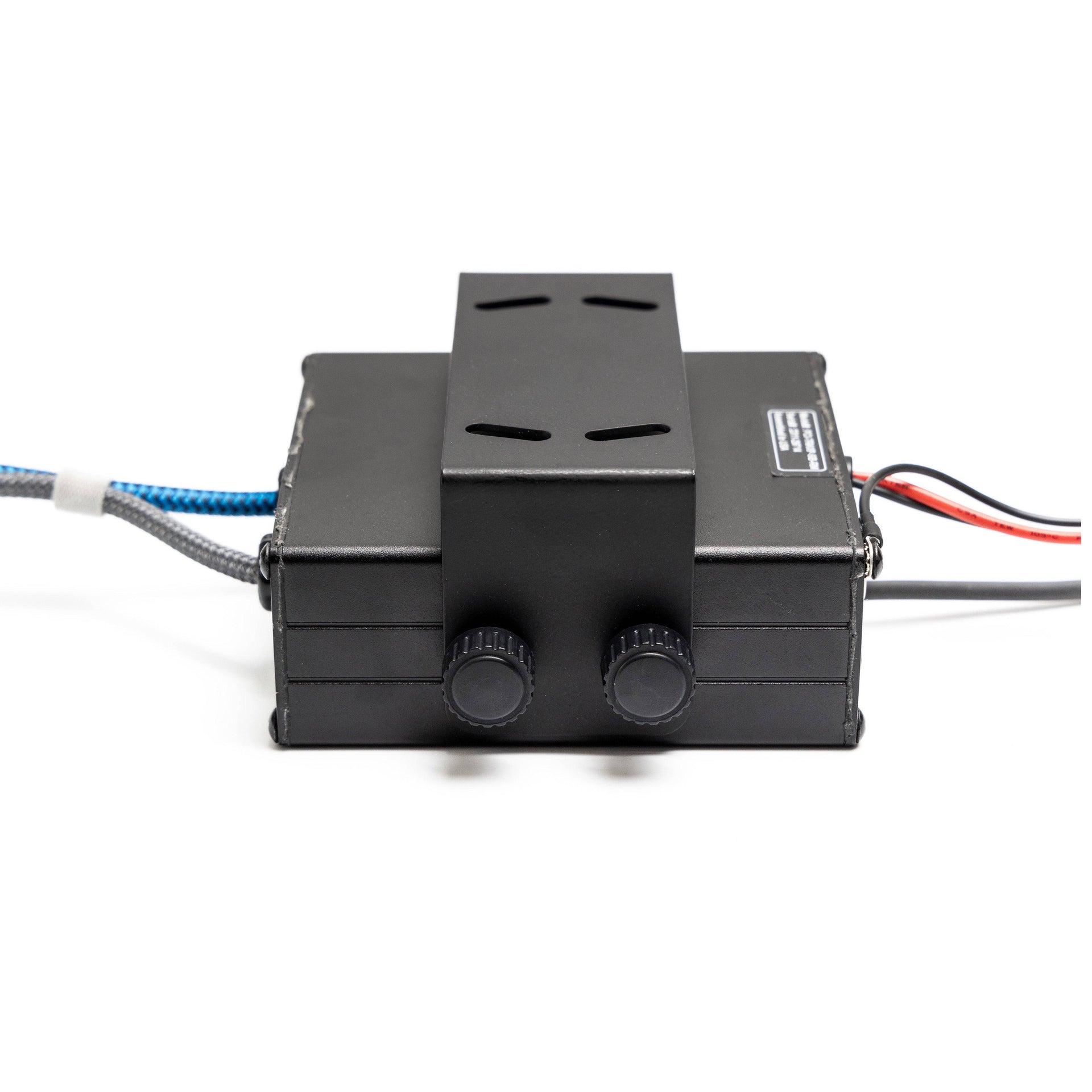

Everything you need to talk to your passenger and your group, in one package. The PCI Race Radios Rocker Intercom fits into a standard rocker switch slot, so it looks factory and stays within reach. The base unit tucks out of sight behind the dash, in the glovebox or under a seat.
Inside the car, voice-activated mics let you talk at a normal volume through your headsets or helmet kits. Start speaking and your music drops automatically, then comes back up when you're done. Bluetooth is built in: the center knob plays and pauses music and answers or ends calls.
To reach the rest of your group, press push-to-talk and you're on the radio. Incoming transmissions turn the music down automatically, so you never miss a call on the trail.
Choose your setup
- Seats: 2-seat or 4-seat
- Intercom: Elite (mono) or Trax (true stereo music)
- Radio: Icom F5021 or Kenwood NX-1700
Our recommendation: choose the Kenwood NX-1700 for machines with dual stators like the Can-Am and RZR Turbo S. It filters RF noise exceptionally well and needs less power to transmit at full strength, which helps on smaller batteries or builds with a lot of accessories. If you go with the Icom F5021, a magnetic radio cover is a smart addition for weather protection.
Radios are FCC Part 90 and come pre-programmed with PCI's licensed channels. See PCI's license-sharing agreement.

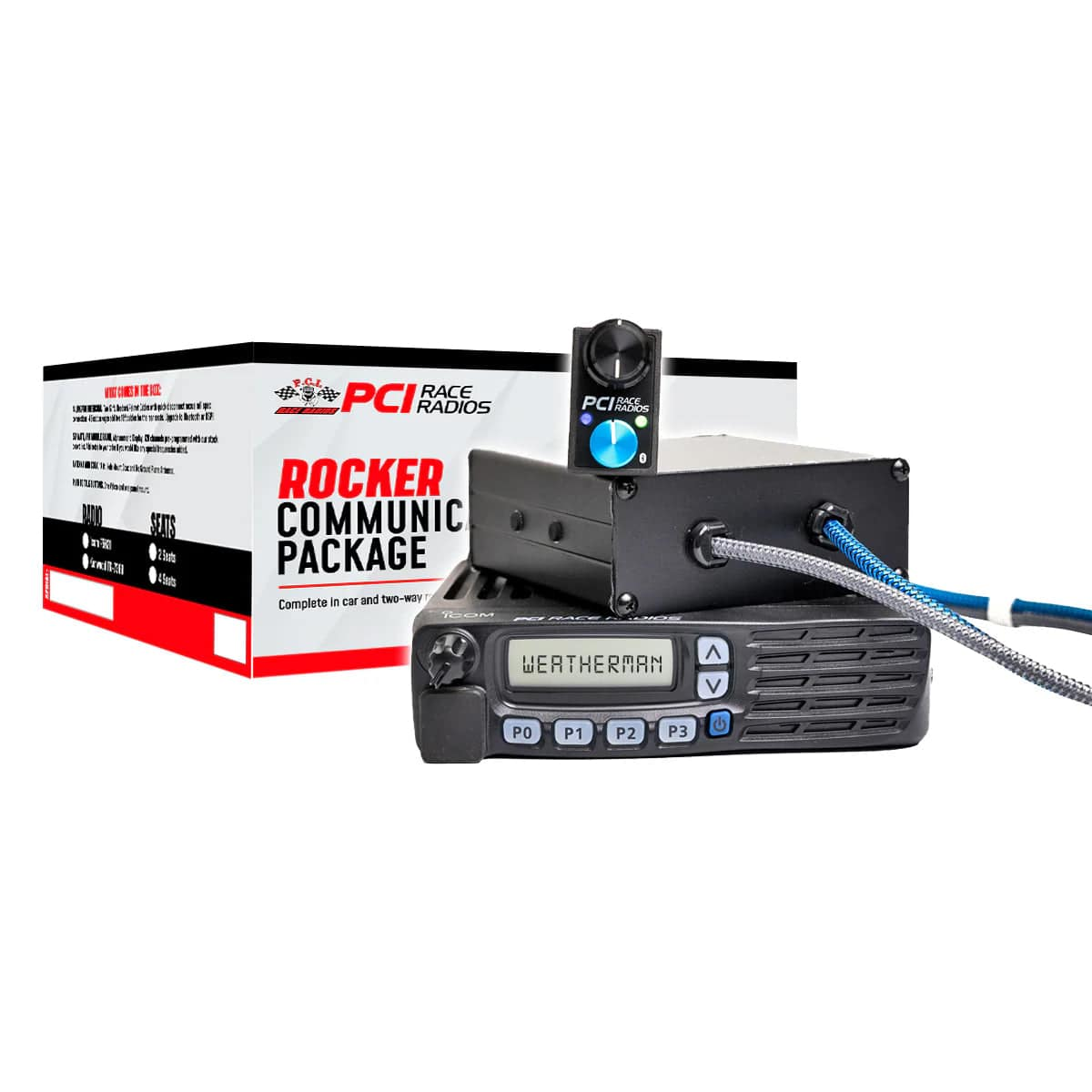

What's included
- PCI Rocker Intercom, Elite Mono or Trax Stereo
- Icom F5021 or Kenwood NX-1700 mobile radio with basic U-shaped mounting bracket
- (2) 12 ft Elite or Trax intercom cables

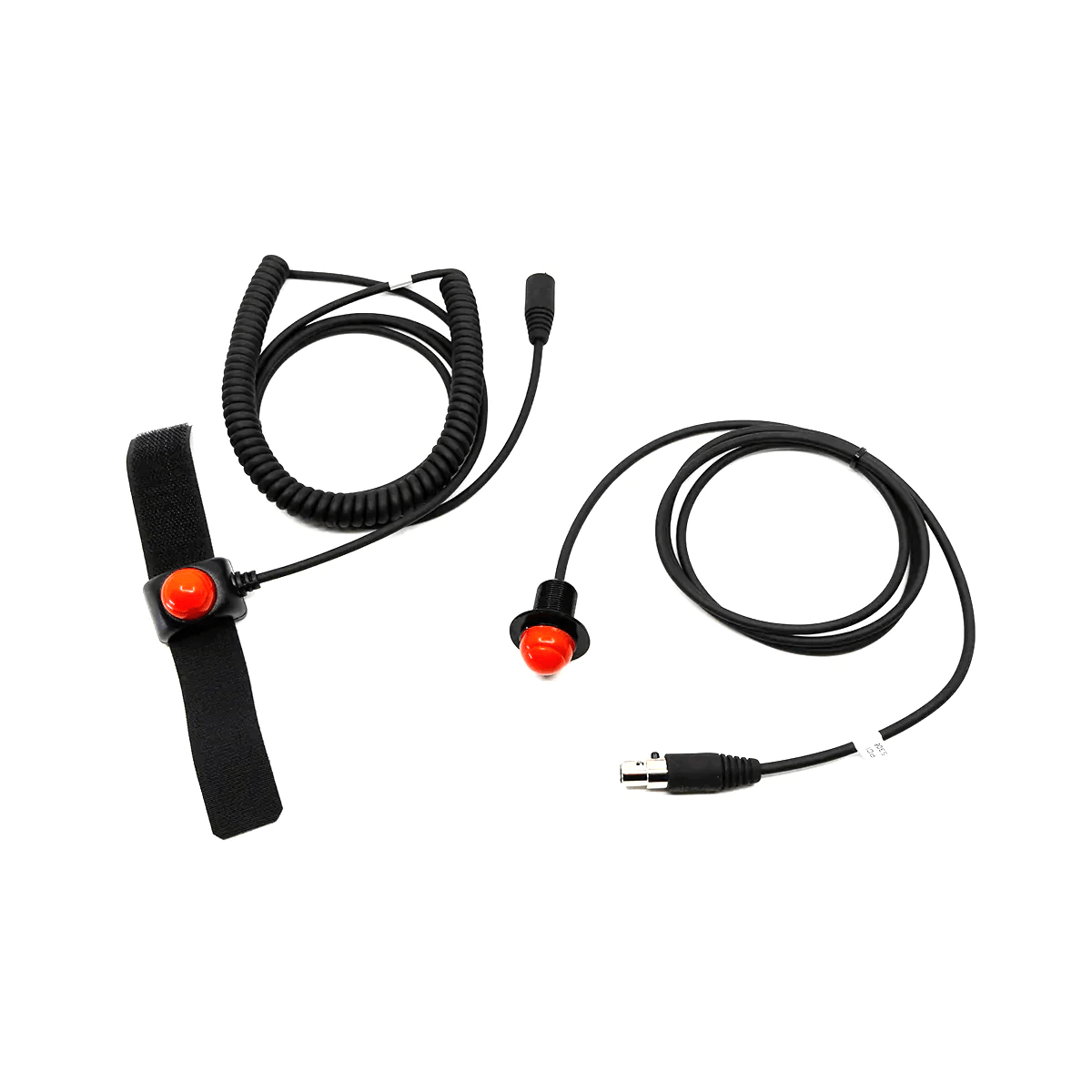

- Panel-mount PTT (female)
- Velcro-mount PTT (female)
- Phone audio input cable (Standard and DSP units only)

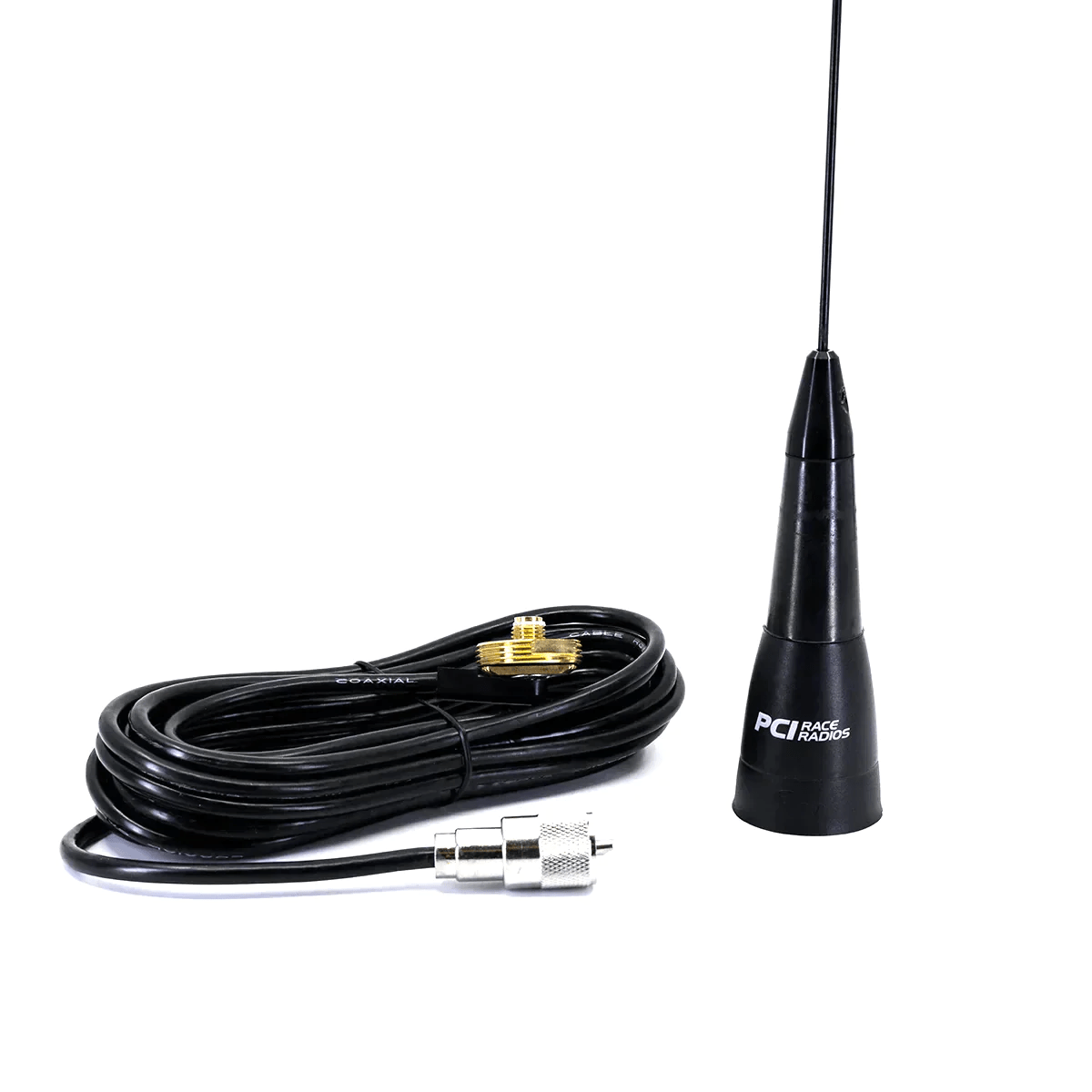

- 17 ft hole-mount coax
- Stealth no-ground-plane antenna
- KLF-2 line filter
Popular add-ons
- (2) 16 ft Elite or Trax intercom cables
- (2 or 4) Elite or Trax over-the-head headsets
- (2 or 4) Elite or Trax helmet wiring kits
- (2 or 4) Elite or Trax G2 headsets
Specifications
- Rocker Intercom: 2.6A draw (5A fuse recommended), 3 ft USB-C lead
- Icom F5021: 50W @ 13.8V, 128 channels, 14A draw on transmit (15A fuse recommended)
- Kenwood NX-1700: 50W @ 13.8V, 260 channels, 13A draw on transmit (15A fuse recommended), IP54 rated
- Elite or Trax headset: 150-ohm low-gain mic, 300-ohm 50mm speakers
- Elite or Trax helmet wiring kit: 150-ohm low-gain mic, 32-ohm 36mm speakers
- Elite or Trax G2 headset: 150-ohm low-gain mic, 180-ohm speakers
- Warranty: 5 years on the intercom, 2 years on radios and cables (manufacturer defects)
Downloads
Installation and troubleshooting video
Rocker Intercom installation instructions and user manual
Icom radio quick reference guide
Kenwood radio quick reference guide
